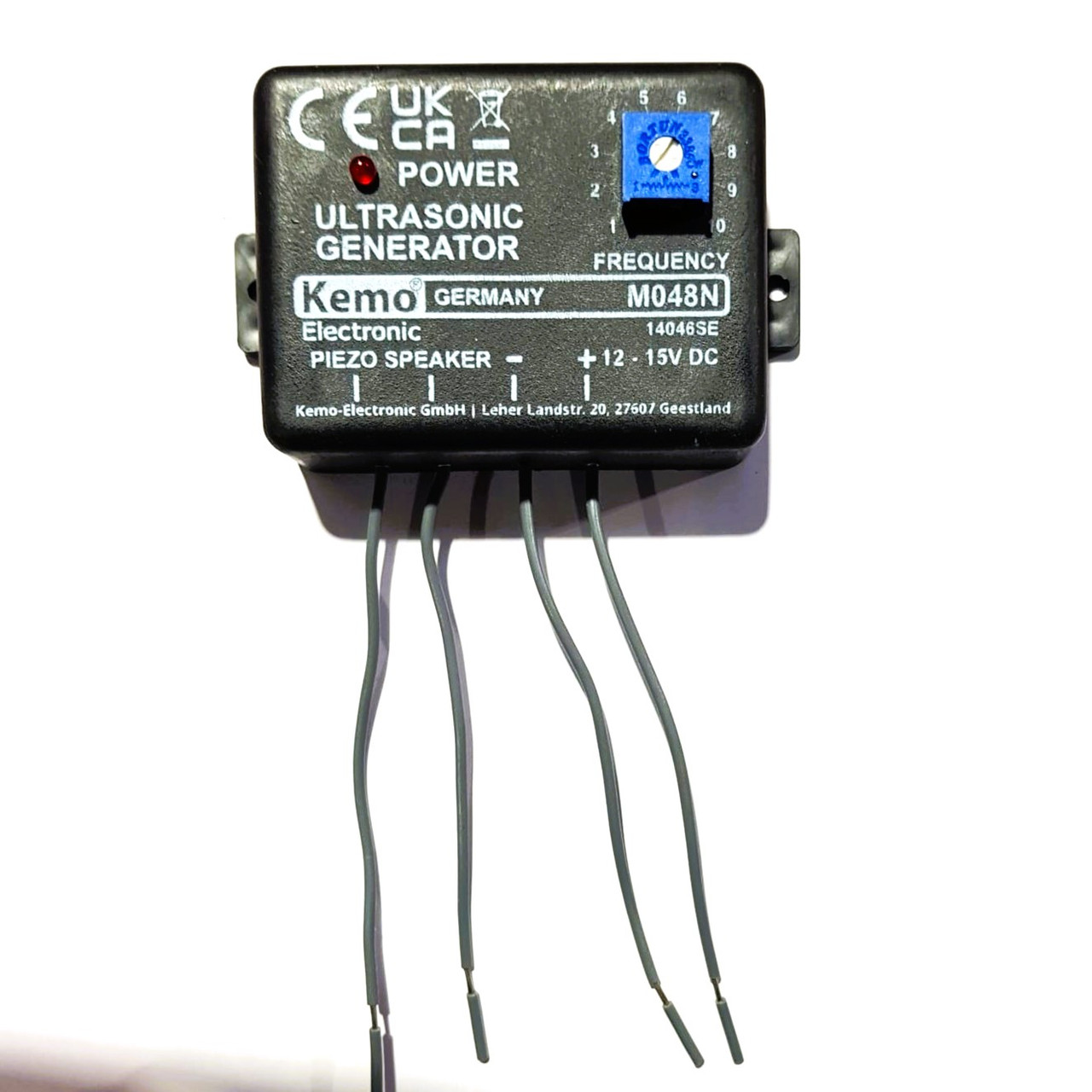

Ultrasonic Generator - Adjustable from 10 To 40 kHz M048N

Variable Ultrasonic Generator - 10kHz To 40 kHz

The units generate from audible to high ultrasound range. The frequency is fully adjustable and variable from approx. 10kHz to 40kHz respectively via the in-built vaiable controller.

The use of the modules varies from animal repelling to high frequency ultrasound research.

Through ultrasonic sounds it is possible to repel various animals and insects: e.g. rats, mice, foxes, rabbits, mosquitoes. The pulsating audio frequency is adjustable from approx. 10...40 kHz (± 20%).
Operating voltage: 12...15 Volt DC. For connection of a piezo-treble loudspeaker. We have listed (with links) the compatible ultrasonic speakers that can be used in conjunction with the module.

Technical data:

Operating voltage: 12...15VDC

Current consumption: < 50mA

Loudspeaker output: only for up to 5 piezo loudspeakers

Audio frequency: adjustable approx. 10...40 kHz (± 20%)

Dimensions: approx. 73 x 44 x 28 mm

Available accessories:

L001 Piezo-spherical cap-tweeter with flare

L002 Ultrasonic wall loudspeaker

L003 Piezo-tweeter

P5123 Mini-piezoelectric-tweeter
